1. Use the three-phase motor to drive the wheels to simulate the power output, and the diode displays the operating conditions of the solenoid valve.

2. The fault simulation system can simulate the actual operating conditions and set up a variety of common faults for the ABS of real vehicles.

3. The pointer pressure gauge indicates the pressure value of each oil passage.

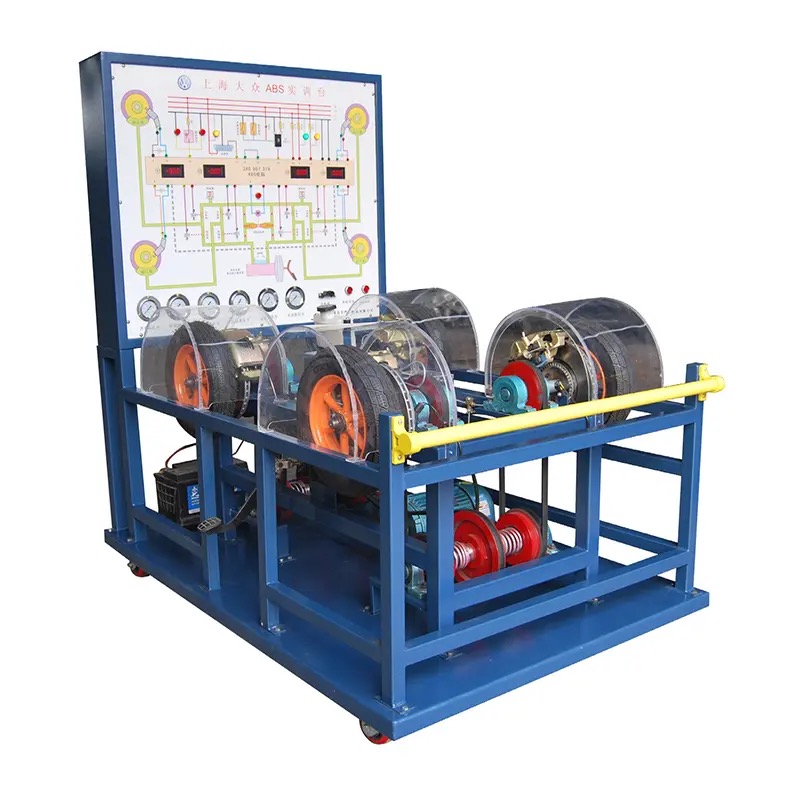

4. The color printing circuit diagram is painted on the training platform panel, and the printing diagram is protected by plexiglass. The trainees can directly compare the circuit diagram and the ABS system to understand and analyze the working principle of the control system.

5. Detection terminals are installed on the panel of the training platform, which can directly detect various sensors and actuators, such as resistance, voltage, current, frequency, waveform signals, etc., on the panel.

6. Equipped with the original car diagnostic seat, the computer diagnostic instrument can be used to read the fault code and data stream of the automatic transmission electronic control system.

7. The training platform is equipped with safety protection devices such as a power switch and a protective cover for other rotating parts.

8. The transmission can carry out various practical training projects. Simulate actual test during braking.

9. The base part of the training platform is welded with a steel structure, the panel cabinet is stamped and formed, the panel cabinet and the base can be separated, the surface of the bench is painted with a paint process, with a universal self-locking caster device.
