Type: BF-DLCZ-PT
Dimensions: 1900×900×1270mm (length×width×height)
Working voltage: DC 12V
Working temperature: -40℃～+50℃
Features
The equipment uses a three-phase permanent magnet AC synchronous motor with a maximum output speed of 12000rpm; the transmission is a single-speed fixed gear ratio transmission, the desktop load-bearing panel is 2 cm thick wood, and the panel is equipped with a high-quality stainless steel bending panel, stainless steel; the desktop is tiled 5mm The thick insulating pad can effectively avoid the damage to the table surface caused by the sliding of components or oil during the disassembly and assembly process, and it can also avoid the hard contact between the components and the component damage.
Training Contents

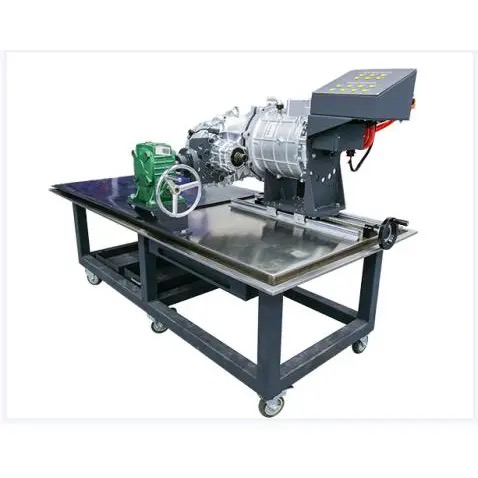

The powertrain disassembly and assembly training platform adopts the original powertrain, equipped with a motor and reducer separation mechanism, and a reducer reversal mechanism, which can flexibly realize powertrain disassembly and inspection. An intelligent information collection and detection box is also installed next to the motor. Students can use measuring instruments to measure the motor phase current waveform, the resolver sensor waveform, and the resistance value of the winding temperature sensor.
