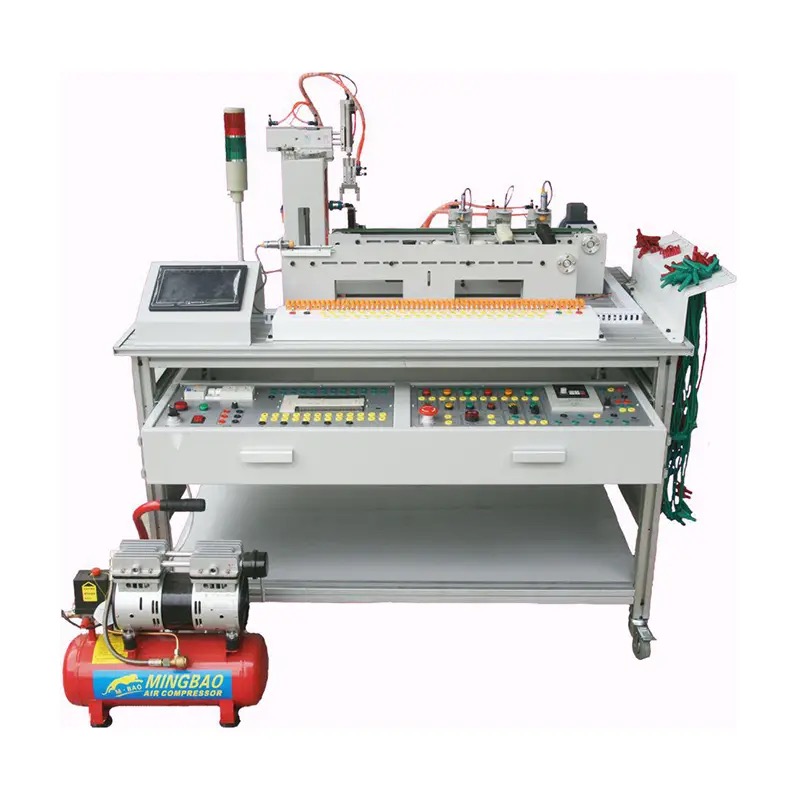

Type: BF-YM-235A

1. Dimensions: 1240 (length) × 720 (width) × 1300 (height) mm (the drawer does not extend)

2. Packing size: 1340 (length) × 820 (width) × 1300 (height) mm (removal of universal wheel)

3. Net weight/Gross weight: 112 Kg/162 Kg

4. The highest sorting speed: 20 times / minute

Categories: ,

Type: BF-YM-235A

1. Dimensions: 1240 (length) × 720 (width) × 1300 (height) mm (the drawer does not extend)

2. Packing size: 1340 (length) × 820 (width) × 1300 (height) mm (removal of universal wheel)

3. Net weight/Gross weight: 112 Kg/162 Kg

4. The highest sorting speed: 20 times / minute

5. Running time of continuous automatic sorting: 24 hours Continuous sorting times: 28800 times/day

6. Rated working power supply: AC: 220V 50 Hz Total power: 1.2 Kw 7. Rated working pressure: 0.3-0.4 MPa (with air pressure sensor)

8. Working environment: temperature -10℃~35℃ relative humidity≤85%(25℃)

9. PLC controller model: Mitsubishi PLC: FX2N–48MR controller (with programming data cable and programming software)

10. Standard inverter: Panasonic VF100 Power: 0.4Kw (other inverters can be selected according to customer requirements)

11. Touch screen: Weilun 7″ TK6070ih

12. Three-phase geared motor: 80YS25GY22 Rated voltage: 3×220V Power: 25W Reduction ratio: 1:15

13. Silent air compressor: MB-550W- 9 Rated voltage: 220V Power: 550W Exhaust volume: 110L/min Pressure: 0.75MPa

-Intelligent-Equipment-Products-(1)
-Intelligent-Equipment-Products-(2)
-Intelligent-Equipment-Products-3

Feature

1. The manipulator mechanism of the high-speed sorting system has a hardware protection function

2. Equipped with various types of sensors

3. The goal pursued: high speed and stability

4. Adopt power supply fault-tolerant protection circuit

Training Contents

A. Installation and debugging of pneumatic system
(1) Installation of pneumatic direction control loop
(2) Installation of pneumatic speed control loop
(3) Installation of pneumatic sequence control loop
(4) Installation of pneumatic manipulator
(5) Connection of pneumatic system air circuit
(6) Position adjustment of the magnetic switch
(7) Pneumatic system debugging
(8) Installation of swing control circuit
B. Installation and debugging of the inverter
(1) The connection between the inverter and the main circuit of the AC motor
(2) Parameter setting and operation of the inverter panel
(3) The inverter panel controls the speed of the AC motor
(4) Control the start and stop of the motor through the external terminals of the inverter

20220425125553

Equipment

C. Installation and debugging of electromechanical equipment
(1) Adjustment of coaxiality of transmission device
(2) Installation and adjustment of belt conveyor
(3) Installation and debugging of handling manipulator equipment
(4) Installation and debugging of object sorting equipment
(5) Installation and debugging of feeding equipment
(6) Installation and debugging of automatic production line equipment D. Installation of electrical control circuit and PLC programming
(1) The connection and programming of the motor forward and reverse control circuit
(2) Connection and programming of motor speed control circuit
(3) Programming of belt conveyor detection program
(4) Pneumatic sequence action control program compilation
(5) Pneumatic manipulator control program compilation
(6) Compilation of control program for mechatronics equipment
(7) Automatic production line control program compilation
E. Installation and debugging of automatic control system
(1) Installation and debugging of various sensors
(2) Automatic control of belt conveyor detection
(3) Automatic control of manipulator
(4) Automatic control of mechatronics
(5) Installation and debugging of PLC control system
(6) Installation and debugging of automatic production line
F. Basic touch screen control and settings
(1) Wiring and basic parameter setting of the touch screen;
(2) Basic instruction programming based on touch screen control mode
(3) PLC, touch screen and inverter communication control.
G. Training on the use of communication engineering (user optional configuration)
