Type: BF-XNYDCZ-SXT
Dimensions: 2050×1870×1100mm (length×width×height)
Working voltage: DC 12V
Working temperature: -40℃～+50℃
Features

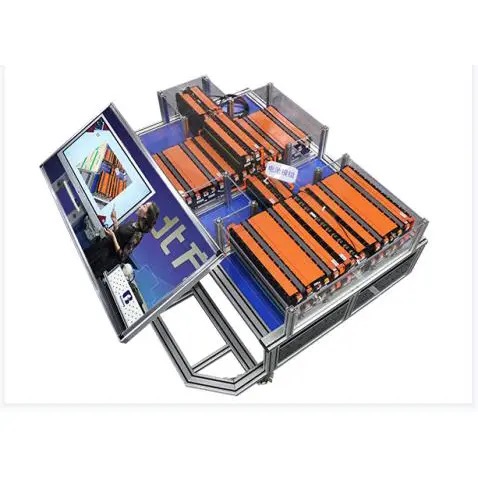

It adopts pure electric vehicle power battery. Students can clearly observe the series and parallel structure of the battery pack, the total positive relay, the total negative relay, the precharge resistor, the high voltage control box, the current sensor and other accessories display. The panel adopts a multifunctional intelligent all-in-one machine that can play product video courses, installs intelligent fault setting software, and connects the hardware through Bluetooth to set the device for faults
Training Contents
1. Students can detect battery voltage, battery temperature, and high-voltage relay control signals by connecting to the teaching board.
2. Students can read the fault code and clear the fault code of the battery management system through the special decoder for new energy vehicles, read the dynamic data stream, parameter setting and other diagnostic functions.
3. Through the Android fault setting system, the equipment can be set to fault to enhance the maintenance and detection ability of the students.
