Type: BF-BCFDJ-SXPT
Dimensions: 2000×1700×1100mm (length×width×height)
Working voltage: DC 12V
Working temperature: -40℃～+50℃
Features

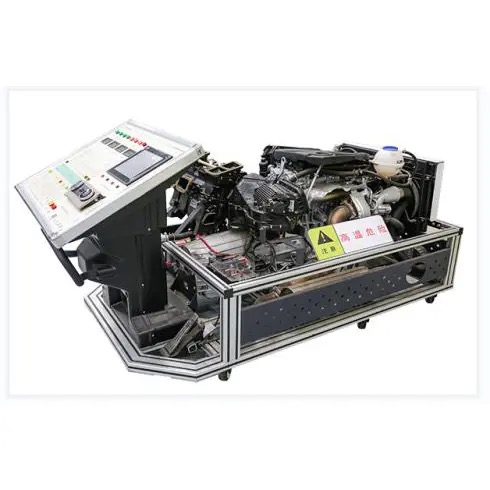

The equipment uses M274 engine equipped with related accessories, with digital meter display function, real-time display of the working voltage of the sensor and actuator under test, equipped with LED indicator function, fully displaying the fuel injection ignition working condition, equipped with oscilloscope function, can measure and train The waveforms of sensors and actuators when the station is working can improve the learning ability of students.
Training Contents
1. This experimental platform allows students to understand the basic structure and working principle of the engine, and to understand the position and working principle of various sensors and actuators through physical objects.
2. Detect the voltage and resistance of various sensors and actuators, such as throttle position sensor, intake air temperature sensor, air flow meter, water temperature sensor, knock sensor, oxygen sensor, etc. through the obvious computer detection terminal.
3. Set up common engine faults, and carry out student fault analysis, troubleshooting, and testing and diagnosis training through fault display, and cultivate students’ fault analysis, detection and diagnosis thinking ability.
4. Equipped with a digital fuel injection pulse width and frequency meter, which shows the change of the fuel injection pulse width of the engine under various working conditions.
