Type: BF-BTFD-FDJ
1. Product size: 1700mm×1000mm×1650mm
2. Power supply mode: 12v 60ah
3. Engine type: in-line four-cylinder
4. Equipment weight: 300kg
5. Parts list: one engine, one battery, panel diagram, frame
Feature

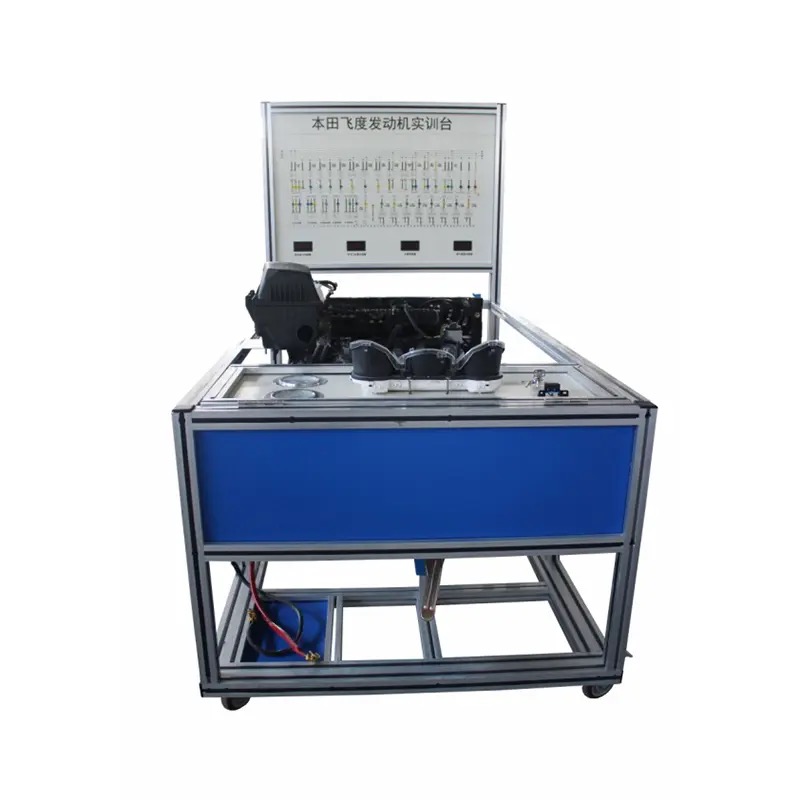

The main structure of the training platform is made of Honda Fit engine, which can perfectly realize the functions of the original car engine system. Maximum power 96.0kw/6600rpm, maximum torque 155.0Nm/4600rpm
Based on DOHC and VTEC technology, it is equipped with VTC (intelligent ignition timing control mechanism in the intelligent variable valve timing and lift control system), and applies Atkinson cycle and fuel direct injection technology, new piston coating technology, low tension Piston rings reduce friction and greatly improve combustion efficiency. At the same time fully popularize DOHC (dual camshaft)
Training Contents
1. The composition structure of Honda Fit engine system;
2. Analysis of the working principle of the electronic fuel injection system;
3. Reading and analysis of the data flow of the electronic throttle system;
4. Detection and analysis of sensors and actuators.
5. Detection and analysis of intake pressure data
6. Oil pressure measurement
