Type: BF-C-004

Volume: 1450MM×850MM×1180MM

Weight: 450KG

Power supply: 12V 50AH, 380V

Categories: ,

Type: BF-C-004

Volume: 1450MM×850MM×1180MM

Weight: 450KG

Power supply: 12V 50AH, 380V

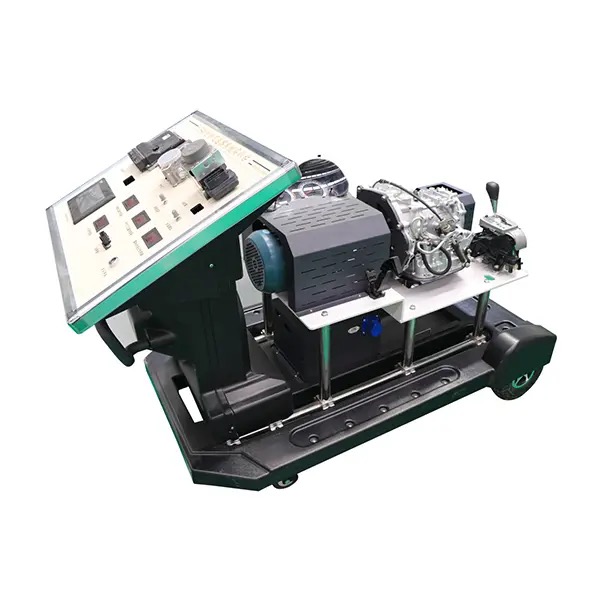

Volkswagen DSG automatic transmission training platform (Volkswagen Magotan)

Feature

1. The speed regulating motor simulates the engine speed, and the hydraulic mechanical installation device loads the continuously variable transmission;

2. Equipped with a digital keyboard fault setting system, using 0-9 digital keyboards and analog switches to complete the fault setting;

3. Power supply: 380V, 50Hz, three-phase alternating current. Motor power: 5.5Kw;

4. The support of the training platform adopts profile welding, the bottom is installed with universal casters, and the surface of the support is sprayed with plastic.

5. Equipped with a 7-inch tablet computer, which is installed on the display panel of the training platform, and the teaching and virtual disassembly software of Honda Fit CVT is installed on the tablet computer

Training Contents

1. Simulation of various working conditions of CVT automatic transmission;

2. Disassembly and assembly, internal structure;

3. Analysis of the working principle of automatic shifting;

4. Detection and diagnosis of each element of the electronic control system;

5. Reading and analysis of the dynamic data stream of each sensor;

6. Detection and analysis of sensors and actuators;

7. Simulation and maintenance of comprehensive faults of transmission
