Type: BF-Geely-DP

1. Product size: 4300×1700×750 (length × width × height)

2. Power supply: AC220V DC12V

3. Power battery voltage: DC320V

4. Product weight: 530Kg

Categories: ,

Type: BF-Geely-DP

1. Product size: 4300×1700×750 (length × width × height)

2. Power supply: AC220V DC12V

3. Power battery voltage: DC320V

4. Product weight: 530Kg

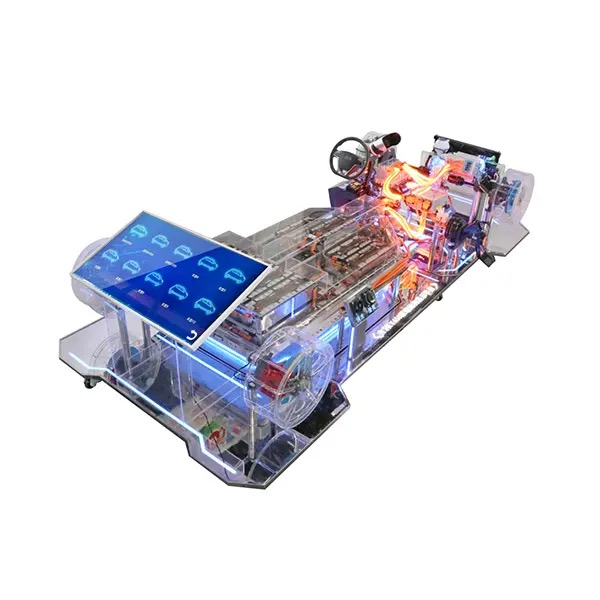

Geely Emgrand Lighting Chassis System Training Platform

Feature

1、This training platform is made on the basis of Geely’s entire vehicle, including power battery assembly, drive motor, motor controller, on-board charger front axle assembly and other components;
2、The platform can re
alize the high-voltage power-on of the vehicle and drive in gear, and the main components are dissected. Under the condition of ensuring normal operation, it can intuitively display the transmission principle of the transmission gearbox, and display the internal structure and working principle of the permanent magnet motor ;

3、At the same time, the equipment adopts a large number of lighting materials to make the teaching and use of the equipment more intuitive and clear.

Training Contents

Through the teacher’s explanation and self-study on this platform, the trainees can:

1. Realize the cognition of pure electric vehicle drive train;

2. Realize the learning of the structure principle of pure electric vehicle driving device;

3. Realize the learning of the structure principle of permanent magnet motor;

4. The battery management system can read fault codes and clear fault codes, read dynamic data streams, parameter settings and other diagnostic functions through the special decoder for new energy vehicles.

5. Through the Android fault setting system, the battery management system can be set for single battery disconnection, short circuit, overvoltage, undervoltage, overcurrent, and overtemperature.

6. It can detect battery voltage, battery temperature, and relay control signals.

20220425125553
